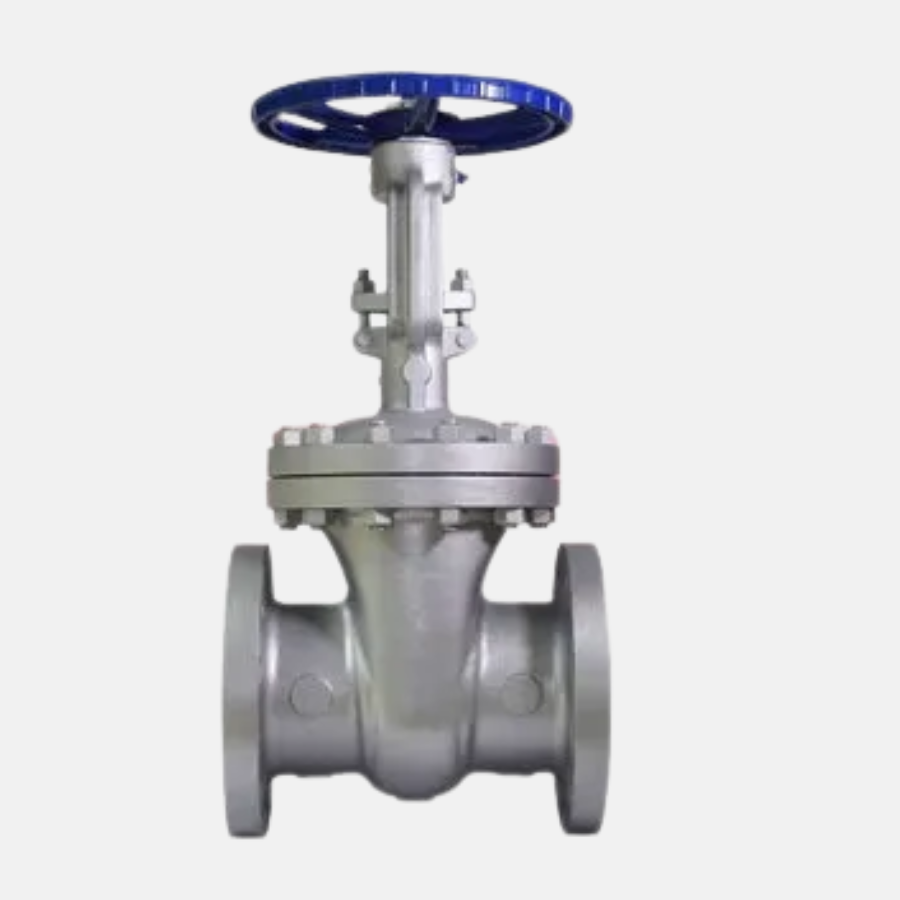

Cast Steel Gate Valve
- Design: Double flanged or butt-weld end with an outside screw, rising stem, and yoke-type bonnet.
- Back Seating Arrangement: Equipped with a back-seating bush for re-packing under pressure.
- Construction: Rigid and sturdy design ensuring durability.
- Performance: Low pressure drop across the valve, providing efficient flow.
- Service Life: Long-lasting performance with superior leak-tightness.
- Applications: Suitable for handling naphtha and its derivatives in oil refineries, as well as water, steam, air, gas, and corrosive liquids.
- Operating Conditions: Engineered for a wide range of pressure and temperature ratings.
- Manufacturing Standard: Compliant with API 600 standards.
- Size Range and Pressure Ratings:
- 50 to 750 mm: Class 150
- 50 to 600 mm: Class 300
- 50 to 350 mm: Class 600
- Design: Double flanged or butt-weld end with an outside screw, rising stem, and yoke-type bonnet.
- Back Seating Arrangement: Equipped with a back-seating bush for re-packing under pressure.
- Construction: Rigid and sturdy design ensuring durability.
- Performance: Low pressure drop across the valve, providing efficient flow.
- Service Life: Long-lasting performance with superior leak-tightness.
- Applications: Suitable for handling naphtha and its derivatives in oil refineries, as well as water, steam, air, gas, and corrosive liquids.
- Operating Conditions: Engineered for a wide range of pressure and temperature ratings.
- Manufacturing Standard: Compliant with API 600 standards.mperature ratings.
-
Size Range and Pressure Ratings:
50 to 750 mm: Class 150
50 to 600 mm: Class 300
50 to 350 mm: Class 600
